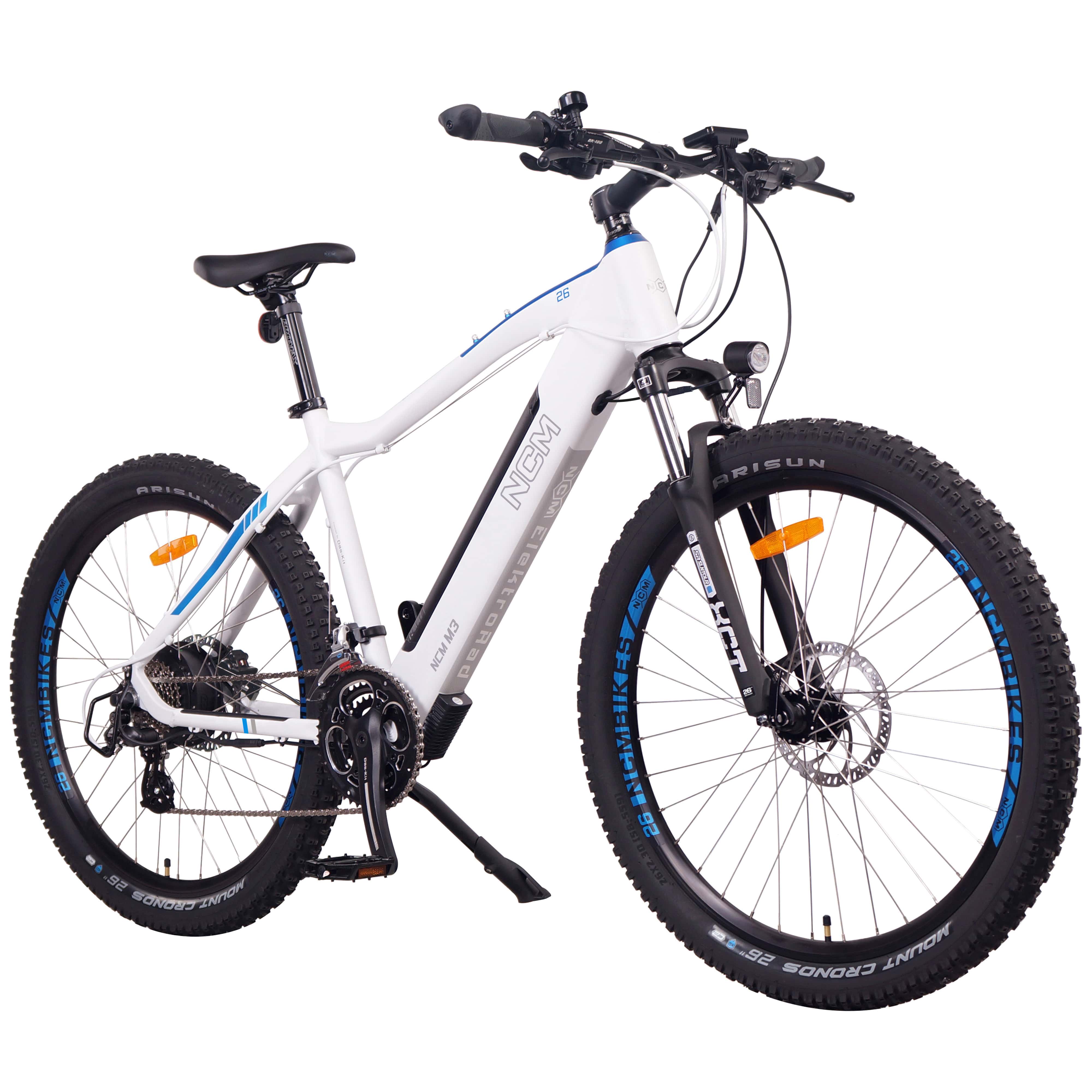

NCM M3

An entry-level e-mountain bike that doesn’t compromise on high-quality components, the NCM M3 is built to maintain its cool no matter what mountain trail it faces, balancing range and performance with accessibility and ease of use.

KEY FEATURES

• Reinforced integrated battery

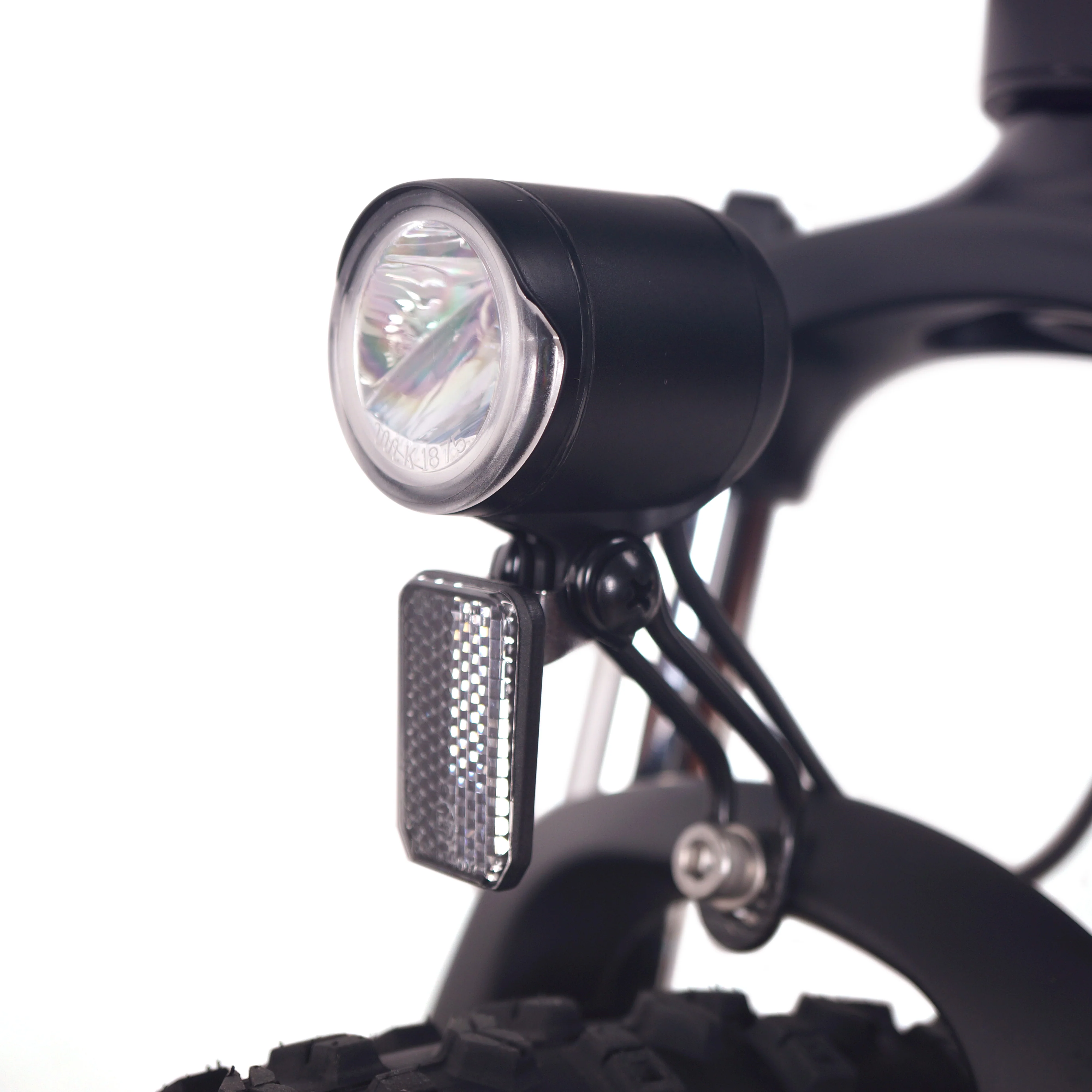

• Custom front light to enhance visibility
• Easily removable battery to charge it anywhere
• Up to 110km Battery Range (depending on the conditions)
• Up to 500W Peak Motor Power

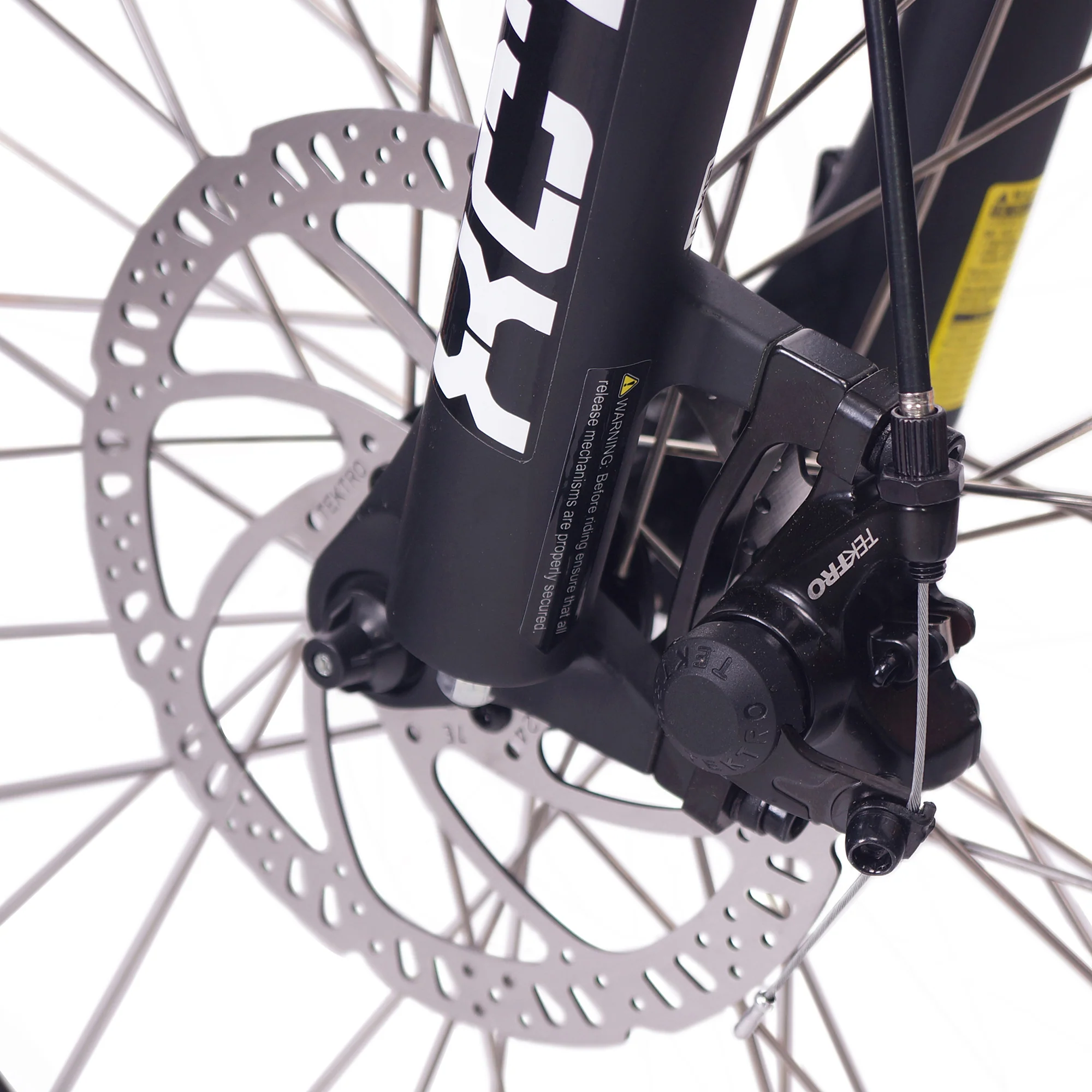

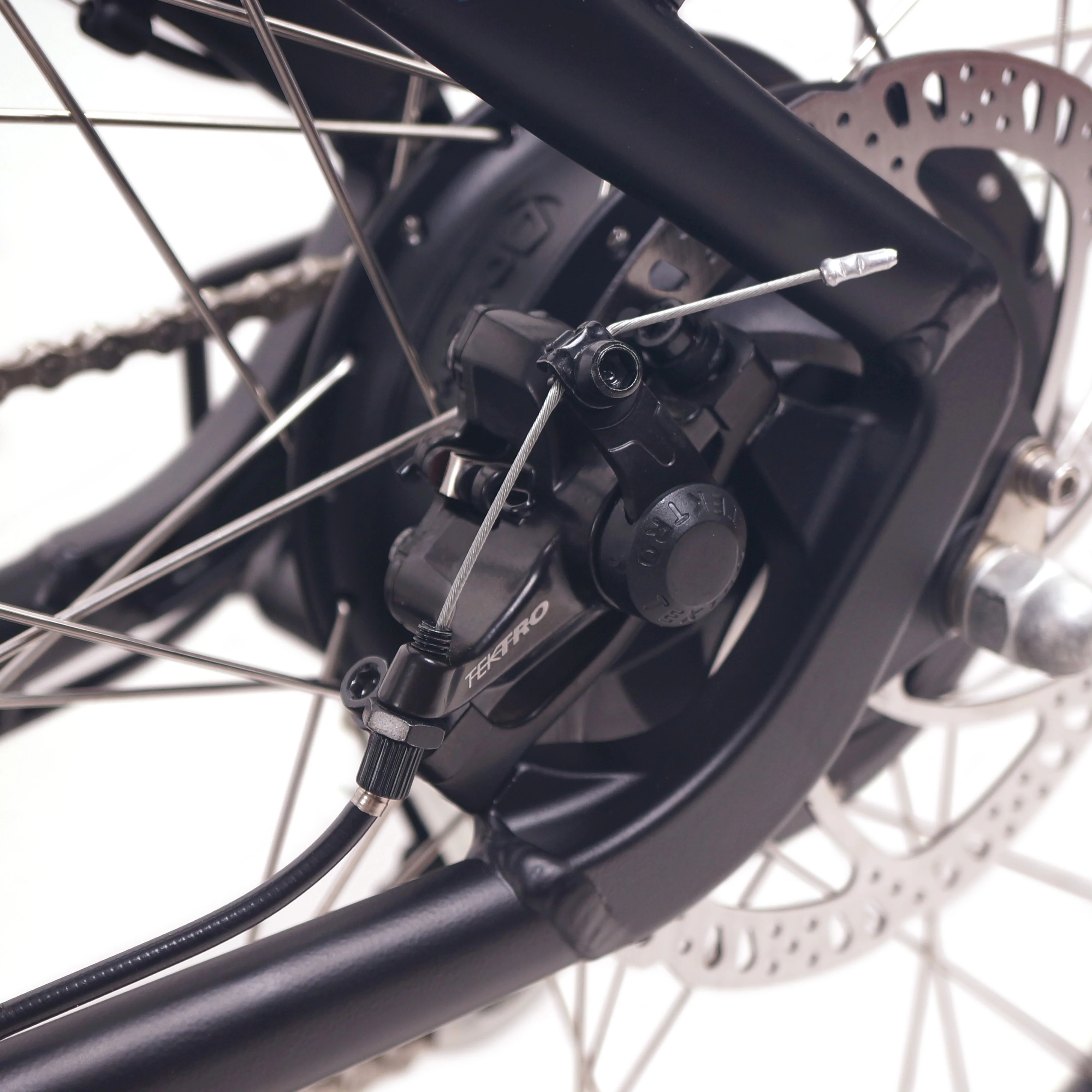

• Das-Kit / Tektro Hydraulic Disc Brakes
• Ergonomic bicycle grips
• Comfortable sitting posture

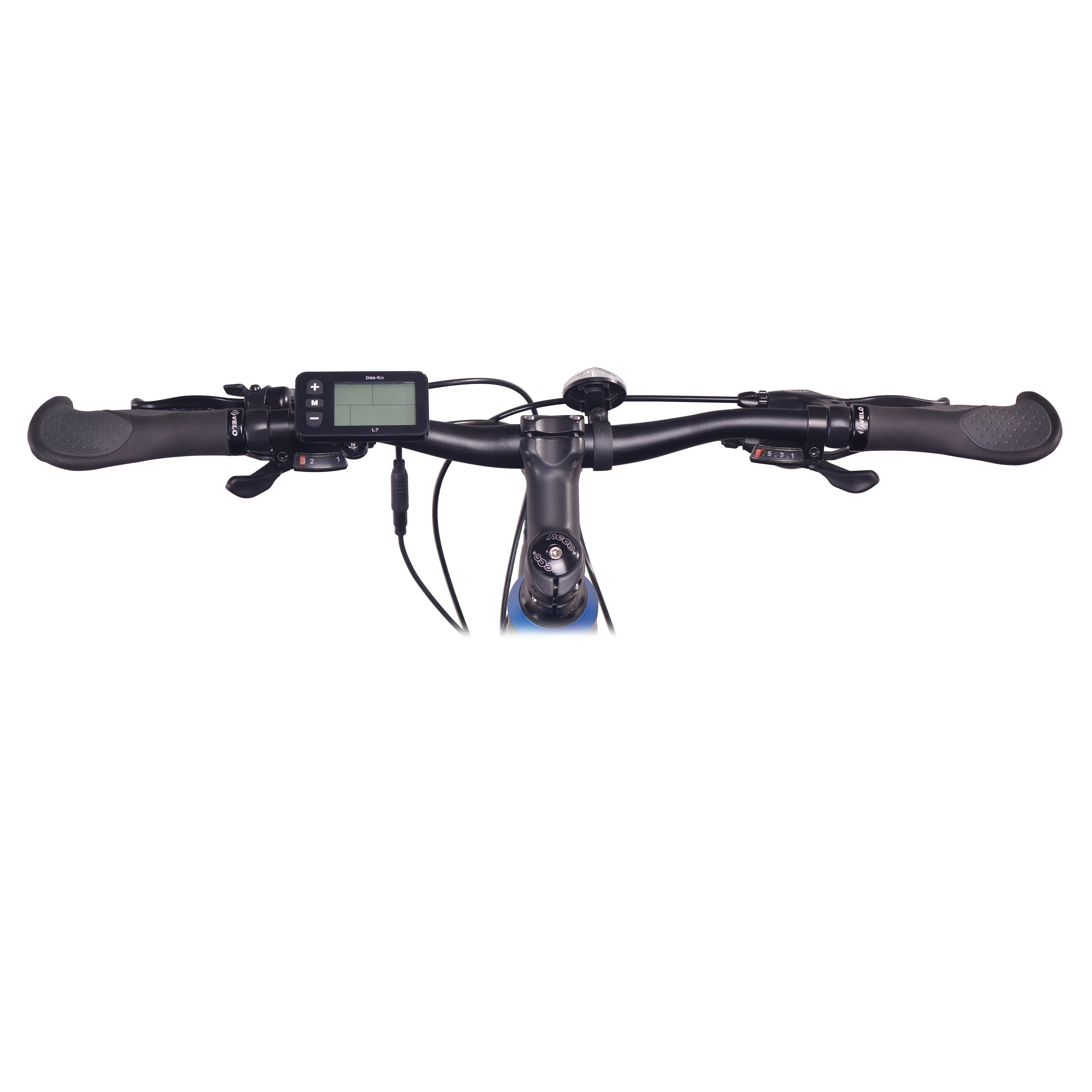

• All the important controls are easily accessible

BIKE COMPONENTS

Frame: Alu. 6061, 26"*18.1 inches / 27.5"*18.9 inches / 29"*20.5 inches

Suspension Fork: Suntour, XCT

Brake: Tektro / Das-Kit Hydraulic Disc Brakes

Freewheel: 7 Speed, 14-28T

Tire: Arisun Mount Cronos

Saddle: VELO, VL-3410

Stem: Promax, Alu.MA-471

Crank: DAS-KIT, CM48,28/38/48T

Shifter Left: Shimano, Altus, F: SL-M315-L, 3 Speed

Shifter Right: Shimano, Altus, R: SL-M315-7R, 7 Speed

Front Derailleur: Shimano, Altus, FD-M313

Rear Derailleur: Shimano, Altus, RD-M310

Chain: KMC, Z51



ELECTRIC COMPONENTS

Battery: Das-Kit, i6-4812, 48V 12AH, 576WH

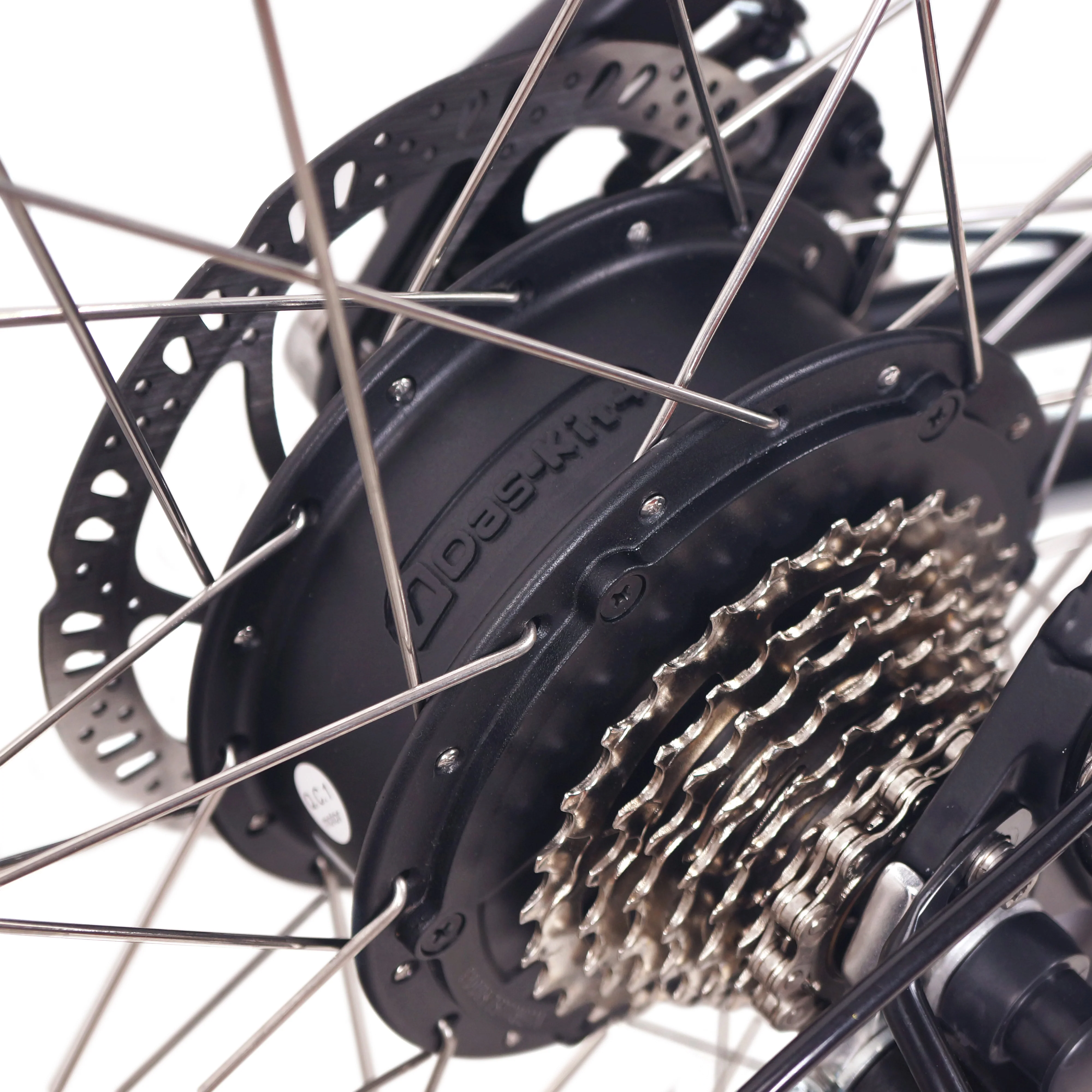

Motor: Das-Kit, X15, Rear drive motor, 48V 250W, 25KM/H

Controller: Das-Kit, CT-i6, 48V18A

Charger: Das-Kit, 48V2A

Display: Das-Kit, L7

Front Light: DH002, 48V, 40 Lux



WEIGHT

Net Weight (with battery): 26.0kg

Battery Weight: 3.4kg

Max Load (driver+bike): 125.0kg
