NCM Munich
The NCM MUNICH is a step-through version based on our NCM Hamburg model. Mount and dismount with ease on the low-step design. The relatively light and sturdy aluminum alloy, the oversized frame comes in two sizes. The 36V battery and Das-Kit motor unite to power you through your daily commute or errand-running without the need to charge often. With several comfort and practicality features, such as seat post suspension, adjustable ergonomic riding position, a rear rack, and built-in bike lock, the NCM Munich is an ideal selection as a daily travel companion.
Battery: Das-Kit, R3S-3613, 36V 13AH, 576Wh, with USB port
Hub Motor Rated Power: Das-Kit, X15, Rear drive motor, 36V 250W
Controller: Das-Kit, CT4, 36V 14A
Charger: Das-Kit, 36V2A

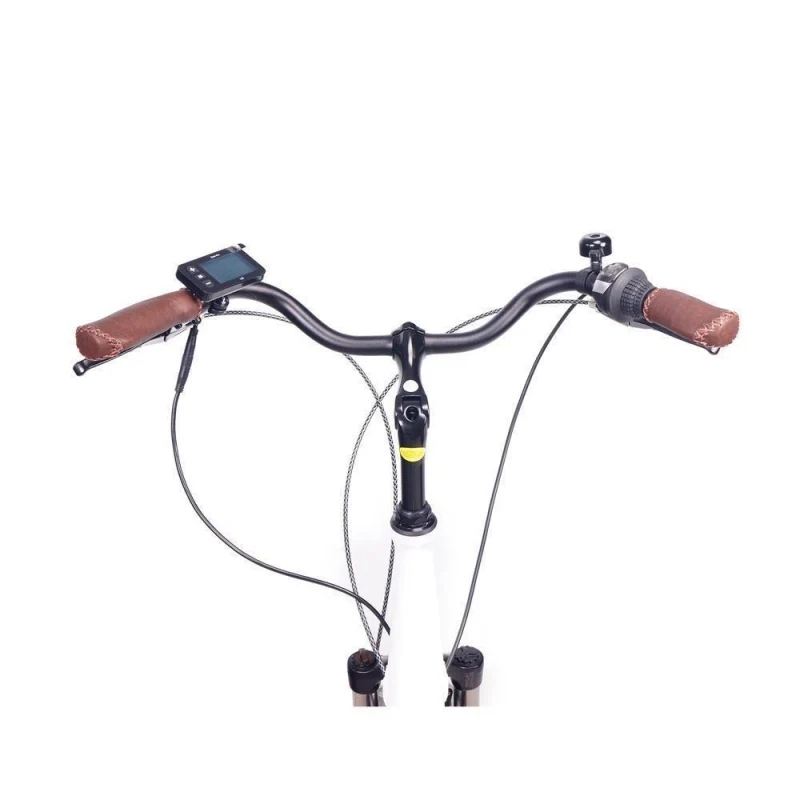

Display: Das-Kit, L6T
Front Light: Spanninga, Kendo, 36V, 30 Lux
Rear Light: Spanninga, Lineo, Integrated with battery
BIKE COMPONENTS
Frame: Alu. 6061, 26” 440MM
Suspension Fork: ZOOM 187D
Brake: F/R: Mechanical TektroDisc Brakes, MD-280
Freewheel: 7-speed, 14-28T, Silver
Tire: Schwalbe, Marathon 26"*1.75, Black
Saddle: Selle Royal, FREEWAY, Brown
Stem: Promax, MQ-527, adjustable
Crank: TL, ICA170ABlack, 44T, Black
Shifter: Shimano, Tourney, SL-RS45-7R, 7-Speed, Silver

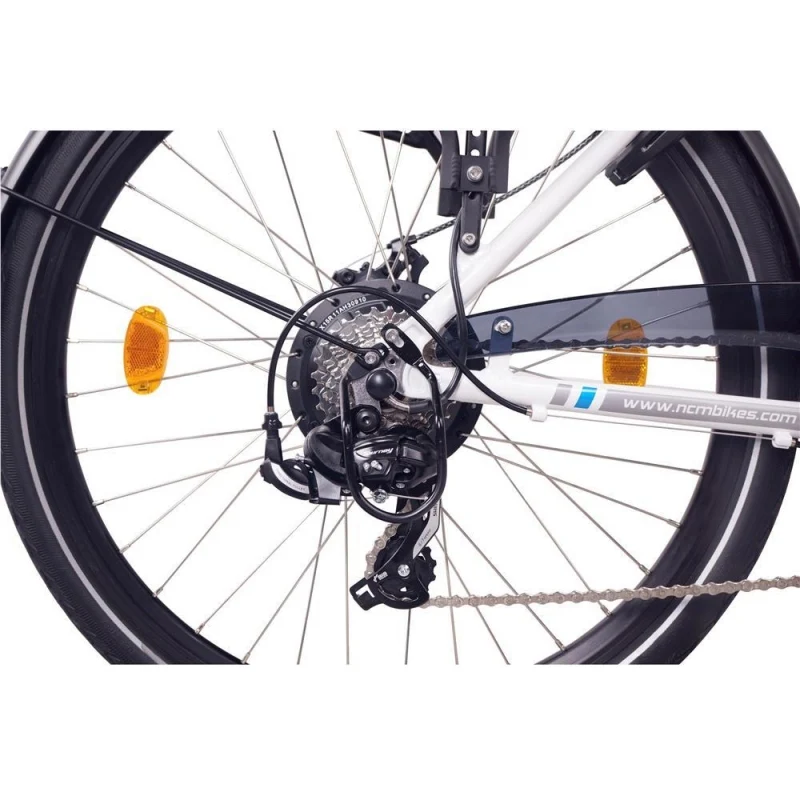

Rear Derailleur: Shimano, Tourney, TY500, 7-Speed
WEIGHT
Weight(without battery): 22.95KG
Battery Weight: 3.55KG
Total Weight(rider and bike): 140KG
