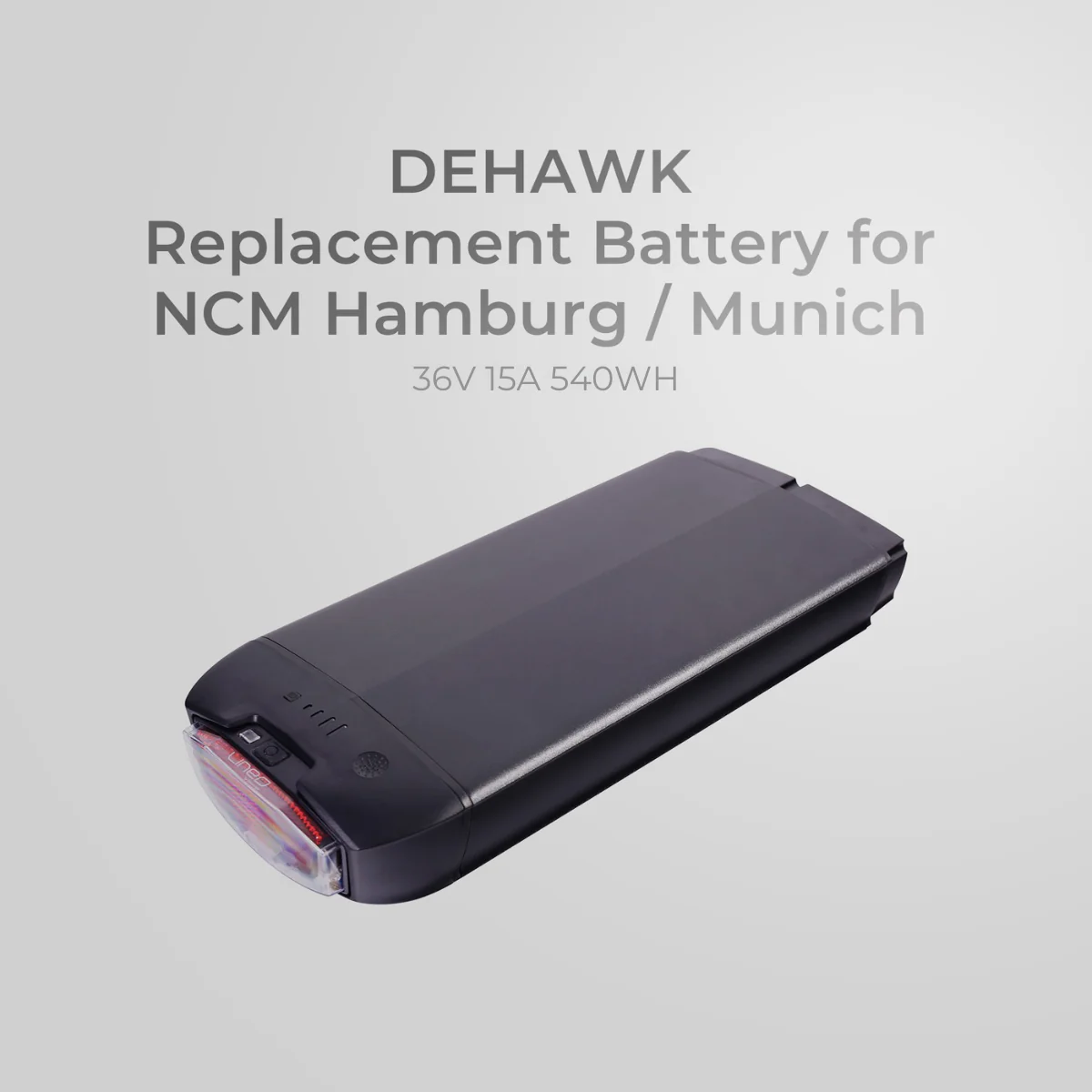

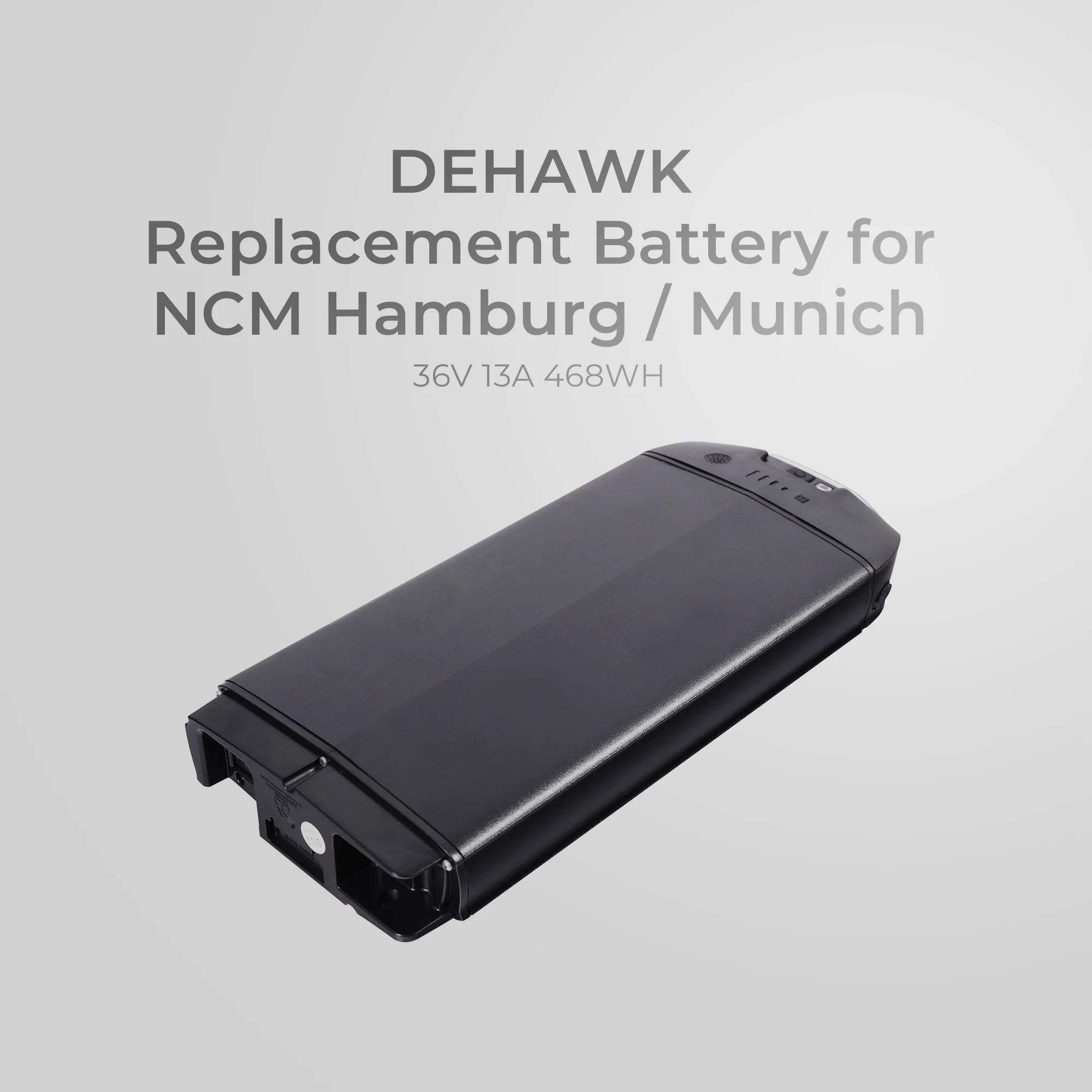

DEHAWK Replacement Battery for NCM Hamburg, Munich [Black]

Model	BKR23615HSB (36V 15Ah 540WH)	BR3S3613HB (36V 13Ah 468WH)
Voltage (nominal)	36V	36V
Capacity	15Ah	13Ah
Energy	540Wh	468Wh
Theoretical range with usual usage	60-80km	50-70km
Cell	Lithium-Ionen NCM18650High Power	Lithium-Ionen NCM18650High Power
Internal resistance	160mΩ	=180mO
Minimum capacity	14.5Ah	12.5Ah
Standard charge	Constant current 2A Constant voltage 42V, 200mA cut-off	Constant Current 2A, Constant Voltage 42V, 200mA Cut-Off
Standard discharge	Constant current 6.25A, final voltage 28V	Constant Current 6.25A, End Voltage 27,5V
Cycles	500,> 60% capacity	500,> 60% Capacity
Max. Charge current	4A	4A
Max. Discharge current	15A	15A
Charging temperature	0-45℃	0-45℃
Operating temperatur	0-60℃	0-60℃
storage	Temperature 15-35℃ at humidity 45-75%	Temperature 15-35℃ at humidity 45-75%
Dimensions	Battery Dimensions: Length x Width x Height 360 x 160 x 70 mm	Battery Dimensions: Length x Width x Height 360 x 160 x 70 mm
Total weight	3.55kg	3.45kg
Charger	included (2A charging current)	included (2A charging current)

Suitable for the following bike type/models

NCM Hamburg
NCM Munich

Package Includes:

1x Battery

Select Size

From $98.88

Original: $282.51

-65%

DEHAWK Replacement Battery for NCM Hamburg, Munich [Black]—

$282.51

$98.88
